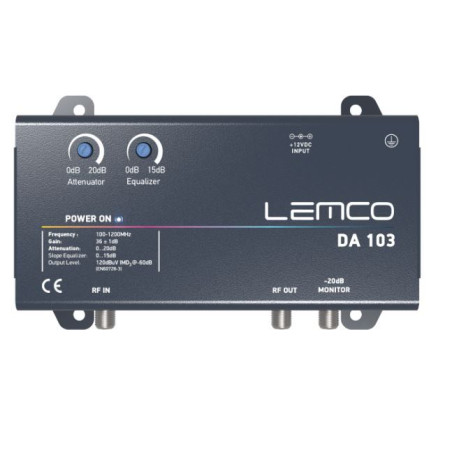

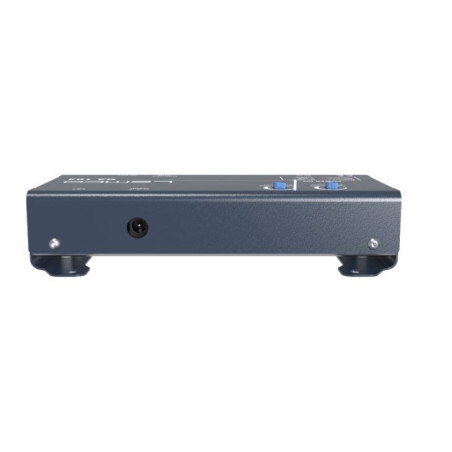

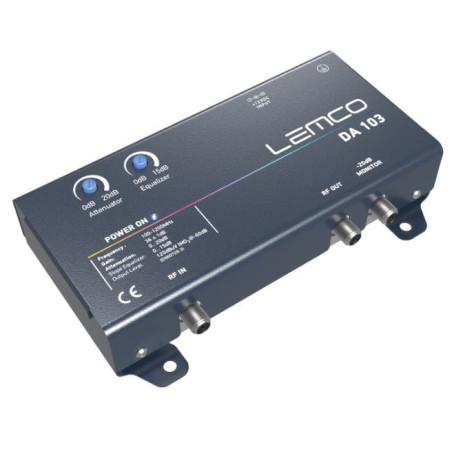

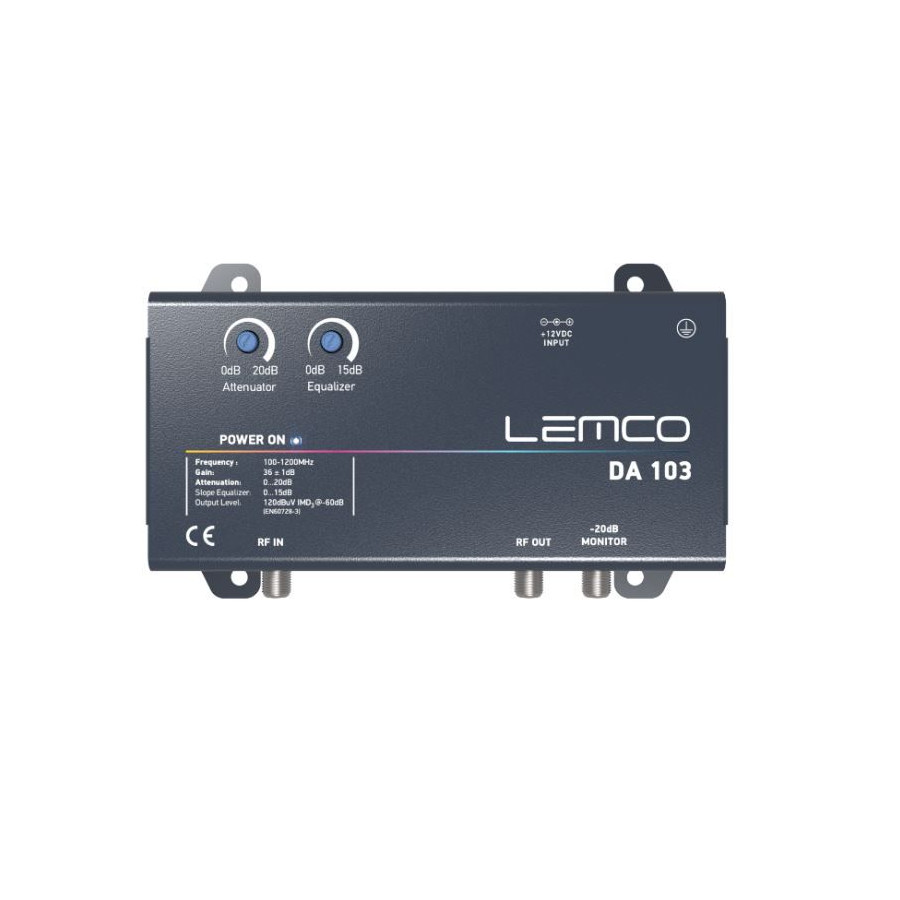

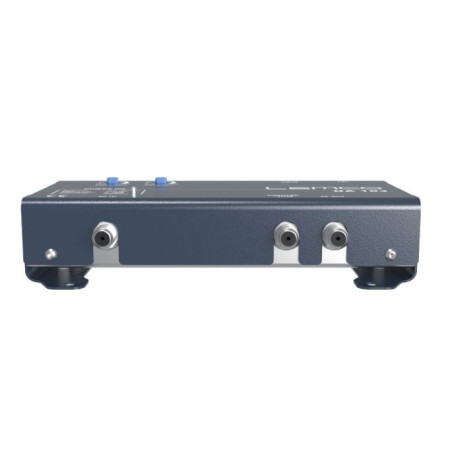

Lemco DA103 Full band 36dB/120dbuV output met equalizer

Lemco DA103 Full band 36dB/120dbuV output met equalizer

€ 199,65
Inclusief belasting
Aantal

Lemco
LEM.DA103
  Beveiligingsbeleid

(bewerken met de module Klantenverzekering)

  Leveringsbeleid

(bewerken met de module Klantenverzekering)

  Retourbeleid

(bewerken met de module Klantenverzekering)

Lemco 36dB signaalversterker inclusief voeding
De Lemco DA103 is een 36dB signaalversterker 120dΒμV uitgang en equalizer. De versterker is met name geschikt voor compacte CATV-distributienetwerken in appartementencomplexen of huizen.

Electrical
Frequency range 100…1200MHz
Output level IMD3 @-60dB (ΕΝ60728-3) 120dBuV
Output level IMD2 @-60dB (ΕΝ60728-3) 1115dBuV
Return Loss >13dB
Linearity ±1dB
Impedance 75Ω

Gain
Gain 36dB ±1
Noise figure 6dB

Loss
Attenuation 0…20dB
Equalization 0…15dB
Test point output 1 @-20dB

Connectors
Input/Output 1/1
Test point output -
Connector F-female

Operational
LED indicator Blue
IP Housing protection class IP 20
Insulation class II

General
Power supply +12VDC
Power supply consumption 290mA max.
Operating temperature 0 °C to 40 °C
Dimensions 165 x 110 x 37 mm
Weight 0.50 Kg

Lemco
LEM.DA103
2 Items

Specifieke referenties

MPN
DA103
