• New

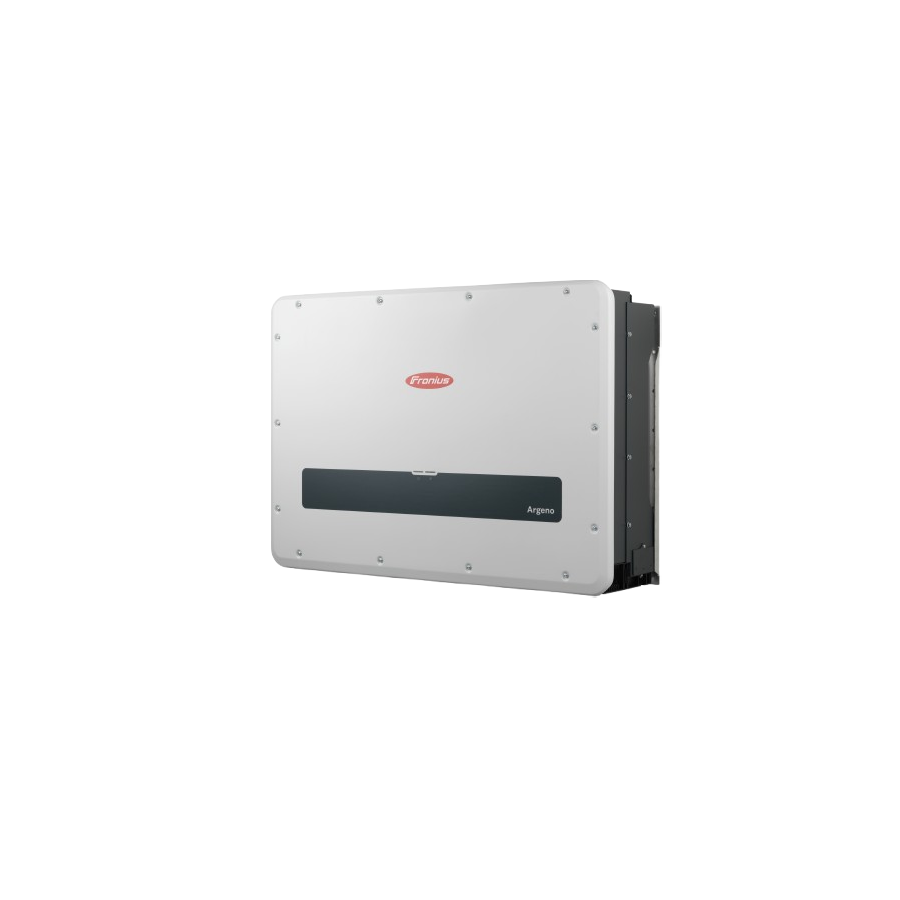

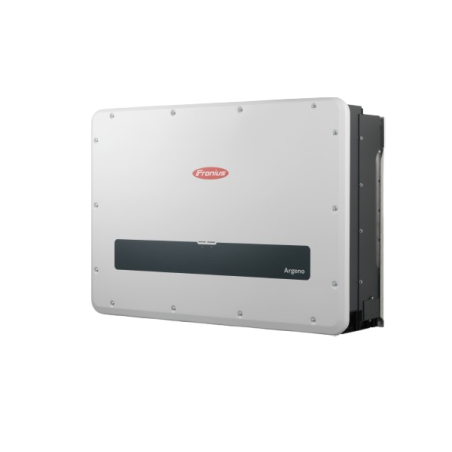

Argento 125

Argento 125

€9.50
VAT included
Argento 125
Quantity

Fronius
0158404
  Beveiligingsbeleid

(bewerken met de module Klantenverzekering)

  Leveringsbeleid

(bewerken met de module Klantenverzekering)

  Retourbeleid

(bewerken met de module Klantenverzekering)

An additional installation controller / EMS is required to connect RIPPLE control receivers, Power Control, etc.

The Argento 125 of Fronius Is the new player for the commercial segment. With 10 MPP trackers and 30 amps of the input current, it offers a high degree of flexibility. Maximum safety thanks to the integrated ARC detection ARC Guard and overvoltage protection type 1 + 2 on AC and DC connections. Thanks to open interfaces, there are universal application options for energy management with Wattpilot, OHMPILOT & CO. The integrated data logger also has numerous connection options for external control signals or load management.

Product advantages:
? An input current per MPPT / 20 A per string
? Integrated and interchangeable AC + DC over voltage protection type 1 + 2
? Integrated data logger + web server

Product:
? AC Power: 125.0 kW
? AC connection: 400 V, 3-phase
? Number of MPPT: 10
? Connections per mppt: 2
? DC input current: 30 a per mppt / 20.0 a per string
? Dc connector: Phoenix Contact Sunclix (counterparts included in the scope of delivery)
? Surge protection: Type 1 + 2 on AC + DC with interchangeable elements
? Communication: 2 x Ethernet
? Interfaces: WSD (Wired Shutdown)
? Protection class: IP66
? Cooling: Active
? Dimensions: 1070 x 755 x 330 mm (h x w x d)
? Weight: 90.0 kg
Fronius
0158404
