• New
Jam54d40-465 / lr

Jam54d40-465 / lr

€102.40
VAT included
JAM54D40-465 / LR
Quantity

JA Solar
0161820
  Beveiligingsbeleid

(bewerken met de module Klantenverzekering)

  Leveringsbeleid

(bewerken met de module Klantenverzekering)

  Retourbeleid

(bewerken met de module Klantenverzekering)

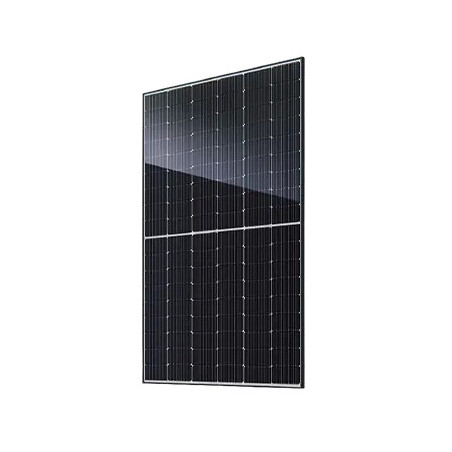

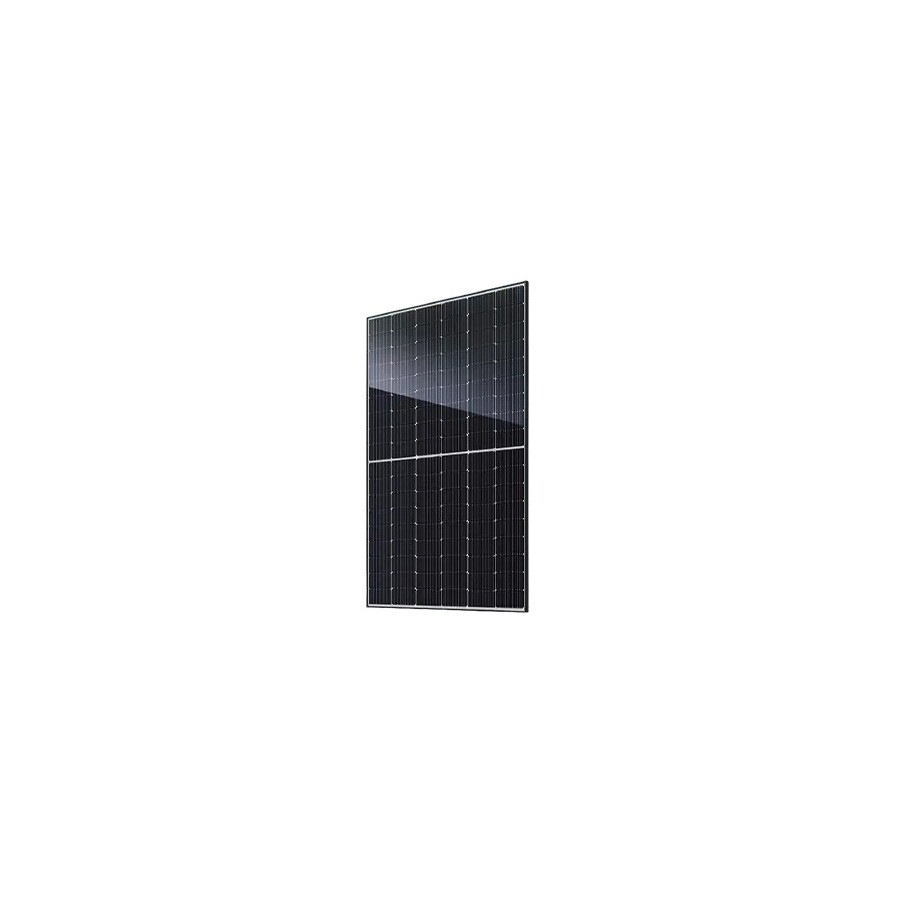

The Jam54D40 LR-Zonnemodule from JA Solar has an export of 465 WP and a module efficiency of up to 23.3%. Thanks to the state-of-the-art N-type cell technology and MBB semi cell design, the module achieves high energy-based and low power loss over the entire life of the service life. The reduced lid (light-induced degradation) guarantees particularly stable initial performance. The robust double-glazing construction reliably protects the module against weather influences. Together with an improved temperature coefficient and optimized low-light performance, the module achieves higher energy yields, even under demanding conditions. This makes it ideal for challenging roof installations. An elegant black frame gives the module a modern, high-quality design. JA Solar Offers a 30-year performance guarantee and a 25-year warranty for this product.
Product advantages:
• High energy yield
• Low power loss
• Robust double glass construction
• Improved temperature coefficient
• Optimized Low-Light Performance
• Long warranty periods
Product:
• Power rating pmax: 465 wp
• Celtype: monocrystalline
• Bifacial: No
• Cell Contact: 16 Russbars
• Frame type: framed
• Frame color: black
• Backsheet color (cell side): white
• Max. System voltage: 1500 V
• Type Connector: MC4 EVO 2A
• Cable length: 1.2 m
• Glass thickness: 1.6 mm (front) / 1.6 mm (back)
• Max. Capacity of the surface: 5400 PA (snow) / 2400 Pa (wind)
• Fire protection class: UL-Type 38 / Class C
• Dimensions: 1762 x 1134 x 30 mm (l x w x h)
• Weight: 22.0 kg
• Warranty: 30 years Performance guarantee and 25 years product guarantee

JA Solar
0161820
1800 Items
