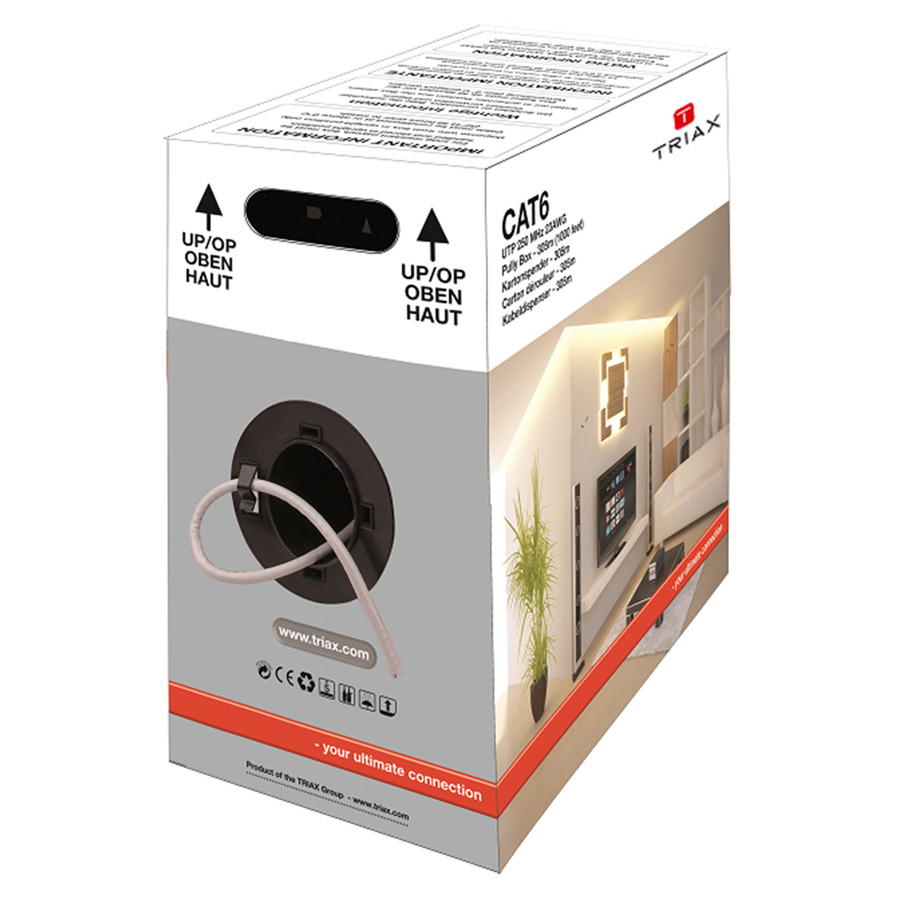

Triax LSZH CAT6 cable in tensile box 305 m (white)
Triax CAT6 U / UTP LSZH 4x2XAWG23 250MHz White Tying box 305M
€299.00
VAT included
Triax LSZH CAT6 cable in tensile box 305 m (white)
TRX.155006
Beveiligingsbeleid
(bewerken met de module Klantenverzekering)
Leveringsbeleid
(bewerken met de module Klantenverzekering)
Retourbeleid
(bewerken met de module Klantenverzekering)
White LSZH CAT6 U / UTP cable in tensile box (305 m)
Triax Cat6 LSZH is a white UTP cable in pull box (305 meters). This CAT6 cable has fire class DCA and is wrapped in a LSZH insulation (Low Smoke Zero Halogues).
The Triax CAT6 Ethernet cable achieves a bandwidth up to 250 MHz (1000 Base-T Ethernet) and a speed of 1000 Mbps (short lengths even up to 10 Gbit).
Technical specifications Triax Cat6 cable lszh white (pull box)
- Cable type: CAT6 LSZH cable
- Fire class: DCA (subclass: S2, D2, A1)
- DOP number: TR0084
- Notified Body: 2661
- Application: Indoor
- Length: 305 m
- Color: White
- Minimum bending radius (Single / Repeated): 8XD MM
- Binnengeleider
- Material: Solid Bare CU
- Thickness: 0.53 mm (± 0.005)
- Flat Filler
- Material: PE Spline
- Insulation
- Material: Solid PE
- Thickness: 1.00 mm (± 0.05)
- Outer
- Material: LSZH
- Thickness: 0.5 mm
- Diameter: 6.0 mm (± 0.50)
- Color code
- Couple 1: Blue / white-blue
- Couple 2: orange / white-orange
- Pair of 3: green / white-green
- Pair of 4: brown / white-brown
- Next
- @ 1 MHz: 74.30 dB
- @ 4 MHz: 65.30 dB
- @ 10 MHz: 59.30 dB
- @ 16 MHz: 56.20 dB
- @ 25 MHz: 53.30 dB
- @ 31.25 MHz: 51.90 dB
- @ 100 MHz: 44.30 dB
- @ 200 MHz: 39.80 dB
- @ 250 MHz: 38.30 dB
- Damping (20 ° C / 100mt)
- @ 1 MHz: 2.00 dB
- @ 4 MHz: 3.80 dB
- @ 10 MHz: 6.00 dB
- @ 16 MHz: 7.60 dB
- @ 25 MHz: 9.50 dB
- @ 31.25 MHz: 10.70 dB
- @ 100 MHz: 19.80 dB
- @ 200 MHz: 29.00 dB
- @ 250 MHz: 32.80 DB
- Retourverlies
- @ 1 MHz: 20.00 dB
- @ 4 MHz: 23.00 dB
- @ 10 MHz: 25.00 dB
- @ 16 MHz: 25.00 dB
- @ 25 MHz: 24,30 dB
- @ 31.25 MHz: 23.60 dB
- @ 100 MHz: 20,10 dB
- @ 200 MHz: 18.00 dB
- @ 250 MHz: 17.30 dB
- Impedance
- 1-100 MHz: 100 Ω (± 15)
- 100-250 MHz: 100 Ω (± 20)
- Conductor DC Resistance @ 20 ° C: <95 ohm / km
- Mutual Capacity @ 1kHz: <1500 pf / m
- Dimensions (H x W x D): 40 x 21 x 40.5 cm
- Weight: 11,500 kg
