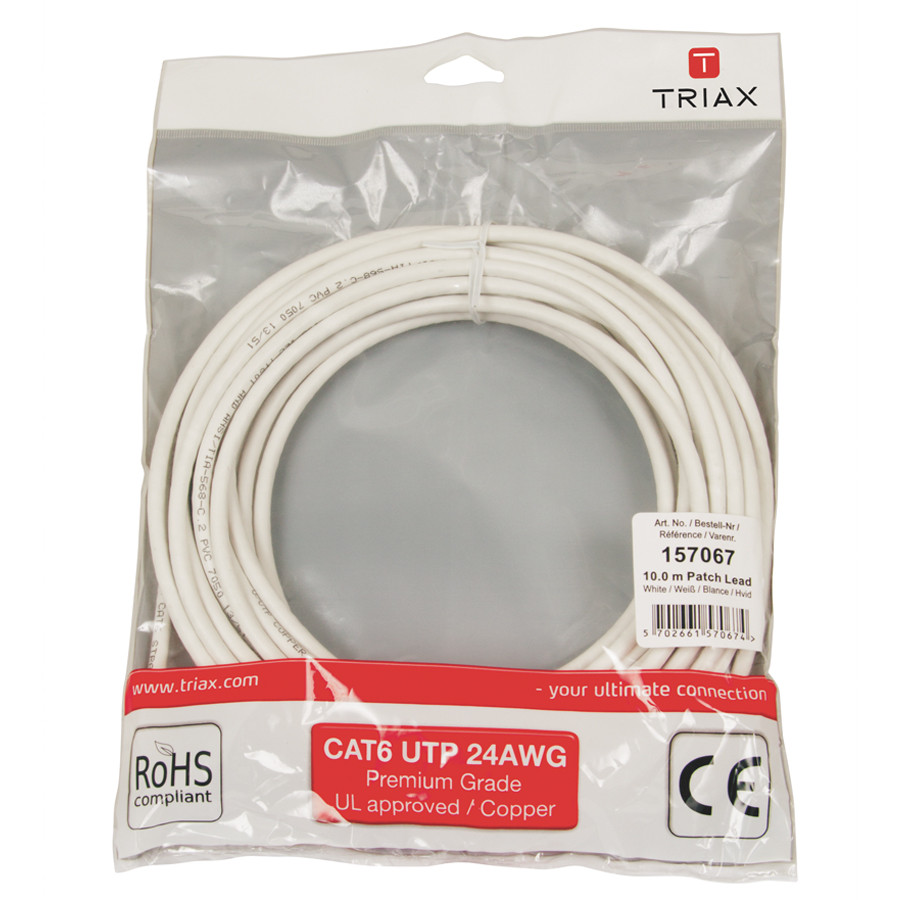

Triax Cat6 patch cable 10 meters (white)
Triax Cat6 patch cable 10 mtr white
€12.95
VAT included
Triax Cat6 patch cable 10 meters (white)
TRX.157067
Beveiligingsbeleid
(bewerken met de module Klantenverzekering)
Leveringsbeleid
(bewerken met de module Klantenverzekering)
Retourbeleid
(bewerken met de module Klantenverzekering)
Cat6 patch cable 10 meters (white)
Triax CAT6 patch cable from 10 meters for the distribution of TV, internet and telephone signals in data communication networks. This patch cable supports data transfer up to 1000 Mbps (Gigabit Ethernet) and its bandwidth limit is 250 MHz. The copper 24 AWG UTP cable has UL approval.
Technical data Triax Cat6 patch cable 10 meters (white)
- Interior guide (core)
- Material: CU Stranded
- Dimensions: 7 x 0.2 mm
- Dielectric (insulator)
- Material: Solid PE
- Dimensions: 1.02 mm (± 0.05)
- Flat Filler
- Material: flexible PE
- Outer
- Material: PVC
- Dimensions: 5.6 mm (± 0.30)
- Color code
- Couple 1: Blue / white-blue
- Couple 2: orange / white-orange
- Pair of 3: green / white-green
- Pair of 4: brown / white-brown
- Next (Near-end Crosstalk)
- @ 8 MHz: 65.0 dB
- @ 20 MHz: 59.1 dB
- @ 31.25 MHz: 55.4 dB
- @ 62.5 MHz: 49.6 dB
- @ 100 MHz: 45.7 dB
- @ 200 MHz: 40.1 dB
- @ 250 MHz: 38.3 dB
- Retourverlies
- @ 4 MHz: 21.6 dB
- @ 8 MHz: 22.5 dB
- @ 10 MHz: 22.8 dB
- @ 20 MHz: 23.7 dB
- @ 31.25 MHz: 23.1 dB
- @ 62.5 MHz: 20.0 dB
- @ 100 MHz: 18.0 dB
- @ 200 MHz: 15.0 dB
- @ 250 MHz: 14.0 dB
- Impedance
- 1-100 MHz: 100 Ω (± 15)
- 100-250 MHz: 100 Ω (± 20)
- Length: 10 meters
- Color: White
