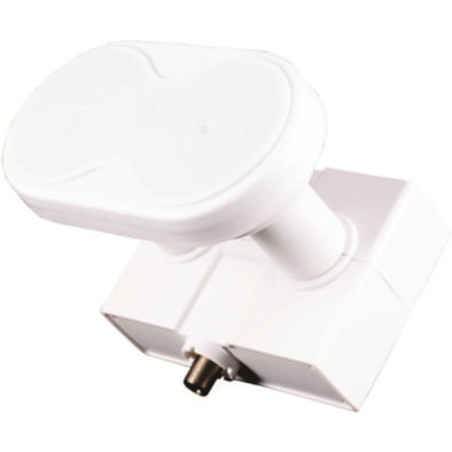

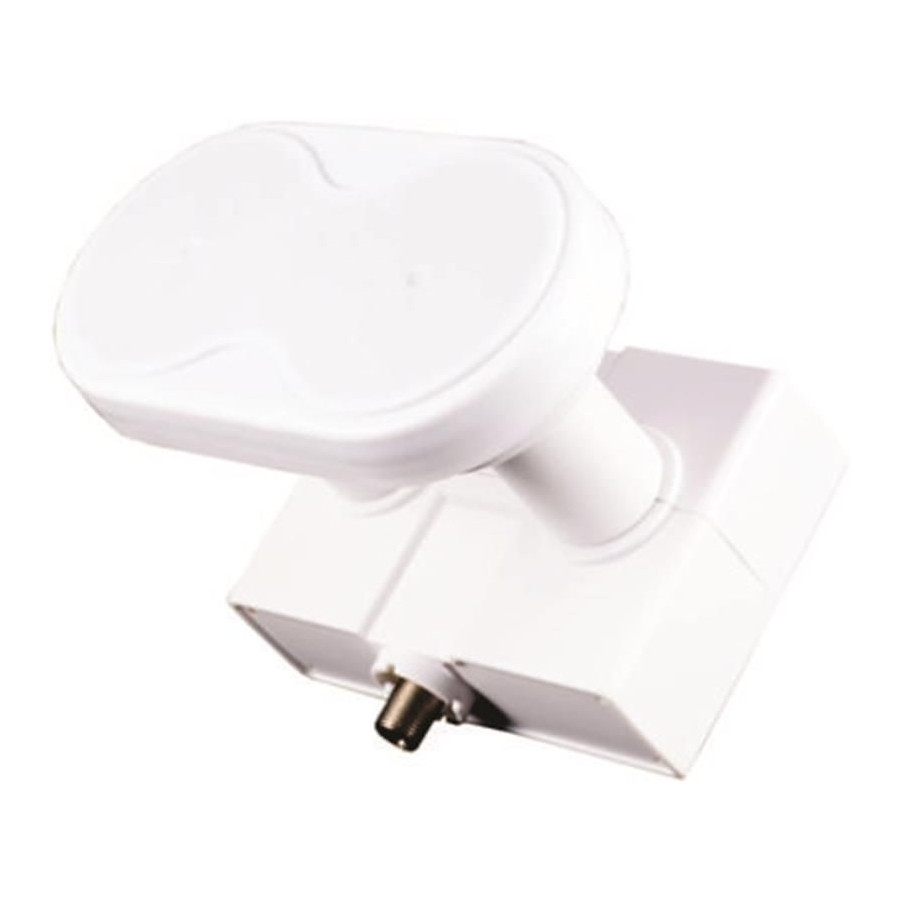

Relook Re-MDS43 DUO Single LNB 19 + 23.5 for 80 cm
Relook Re-MDS43W DUO Single LNB 19 + 23.5 for 80 cm 4.3gr
€21.95
VAT included
Relook Re-MDS43 DUO Single LNB 19 + 23.5 for 80 cm
ART.116550
Beveiligingsbeleid
(bewerken met de module Klantenverzekering)
Leveringsbeleid
(bewerken met de module Klantenverzekering)
Retourbeleid
(bewerken met de module Klantenverzekering)
Relook Re-MDS43 DUO Single LNB 19 + 23.5 for 80 cm
Duo LNB 4.3 ° with a single output for an 80 cm dish.

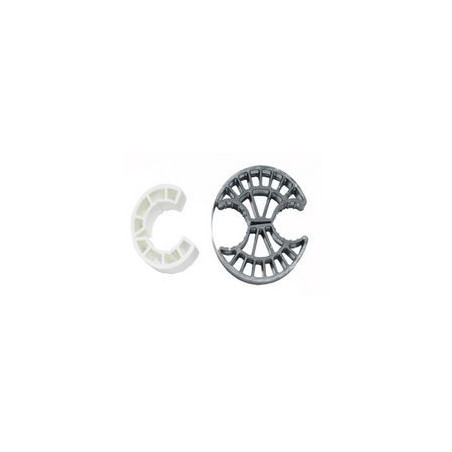

Feed thickness 23mm, adapter ring for 40 mm LNB holder.
Specifications:
| Input Frequency Range | Low band: 10.7 ~ 11.7 GHz |
| High band: 11.7 ~ 12.75 GHz | |
| Output Frequency Range | Low band: 950 ~ 1950 MHz |
| High band: 1100 ~ 2150 MHz | |
| L.O. Frequency | Low band: 9.75 GHz |
| High band: 10.60 GHz | |
| L.O. Frequency Stability | +/- 1 MHz (max) @ Room Temp. |
| Local oscillator frequency phase noise | -60 dbc / hz @ 1kHz (max.) |
| -85 dbc / hz @ 10khz (max.) | |
| -105 DBC / HZ @ 100KHz (max.) | |
| Noise Figure | 0.2 dB (type.) |
| Conversion gain | 56 ~ 60 dB |
| Gain Flatness 26 MHz Bandwidth | +/- 0.5dB (type.) |
| Polarity Switching Voltage | Vertical: 11.0 ~ 14.0 VDC |
| Horizontal: 16.0 ~ 20.0 VDC DiSEQC 1.0 | |
| Band Switching | Low band: 0 kHz |
| High band: 22 kHz (+/- 4 kHz) DiSEQC 1.0 | |
| Cross-Pol. Isolation | 25 dB (type.) |
| Image REJECTION | 40 dB (min.) |
| Current Consumption | 110 mA (type.) |
| Output connector type | 75 OHMS F-FEMALE |
| Output spurious | <-60dbm |
| Operating Temperature Range | -40 ° C ~ + 65 ° C |
| Feed Length | 42 mm |
