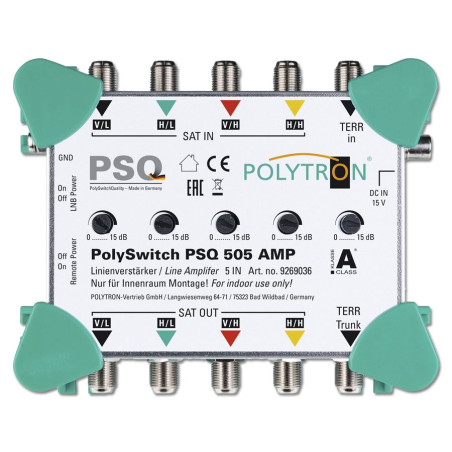

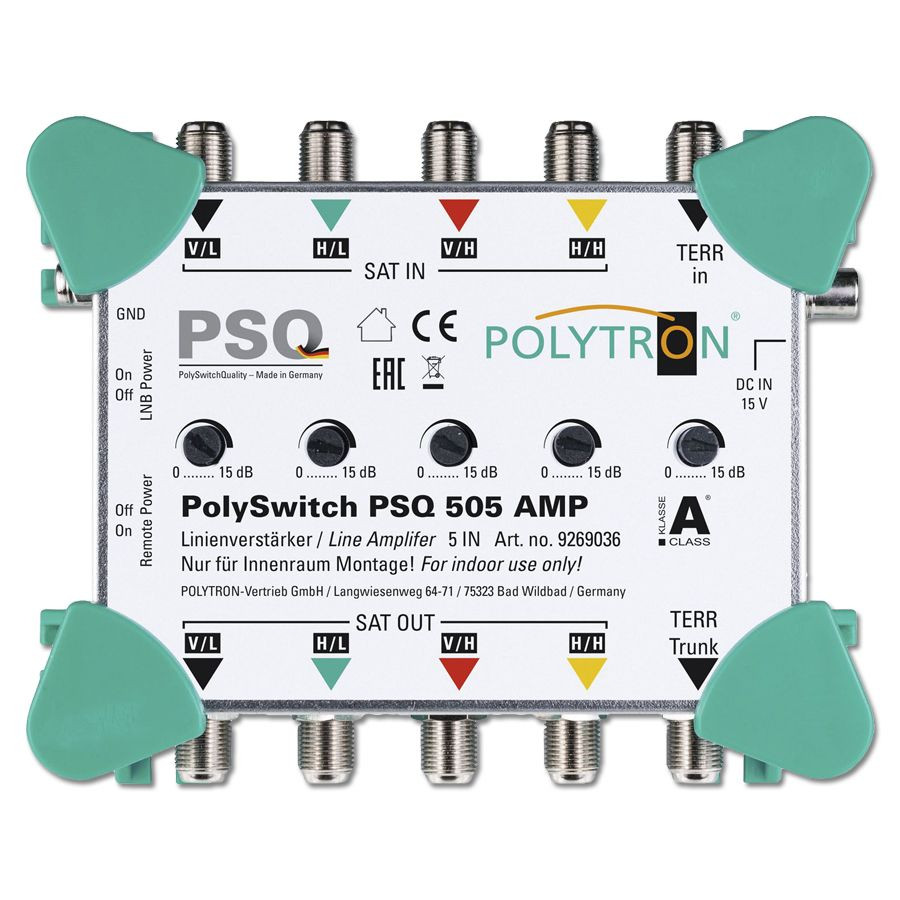

Polytron PSQ 505 AMP Multiswitch Lijnverbst. 5 in 5 OUT OPO

Polytron PSQ 505 AMP Multiswitch Lijnverbst. 5 in 5 OUT OPO

€159.00
VAT included
Polytron PSQ 505 AMP Line amplifier (5 inputs)
Quantity

Polytron
POL.9269036
  Beveiligingsbeleid

(bewerken met de module Klantenverzekering)

  Leveringsbeleid

(bewerken met de module Klantenverzekering)

  Retourbeleid

(bewerken met de module Klantenverzekering)

Line amplifier with 5 inputs

Polytron PSQ 505 AMP is a line amplifier with 5 inputs (4 x SAT, 1 x ter). Each input (SAT & TER) is equipped with a 15 dB level control.

The PSQ 505 AMP gets its power supply via an optional external power supply or switchable remote power supply. The LNB power supply is also switchable.

Technical data Polytron PSQ 505 AMP

  • Inputs: 4 x SAT, 1 x ter)
  • Outputs: 4 x SAT, 1 x ter (1 x Through Output)
  • Input frequency
    • SAT: 950-2200 MHz
    • TER: 18-862 MHz
  • Insulation
    • SAT / TER: GEM. 30 dB
    • Horizontal / vertical: Av. 30 dB
  • Return loss (inputs and outputs)
    • SAT: GEM. 10 dB
    • TER: GEM. 10 dB
  • Max. inputniveau
    • SAT: 98 DBμV
    • TER: Passive
  • Gain
    • SAT (950-2150 MHz): 20 ~ 24 dB
    • Ter (18-862 MHz): 20 dB
  • GAIN CONTROL: 15 DB
  • Slope Control
    • SAT: 4 DB (FIX)
    • TER: -
  • Max. output
    • SAT (IMA3 35 dB): 116 dbμV
    • TER (IMA3 60 dB): 110 dBμV
  • DC power consumption: 420 mA @ 12 ~ 18 VDC
  • Operating temperature: -20 ~ +70 ° C
  • Work voltage: 12 ~ 18 VDC
  • LNB feed current: 2000 mA optional (with PMP-NG 15/3300)
  • Dimensions (B x H x D): 140 x 110 x 63 mm
Polytron
POL.9269036
1 Item

Specific References

MPN
9269036
