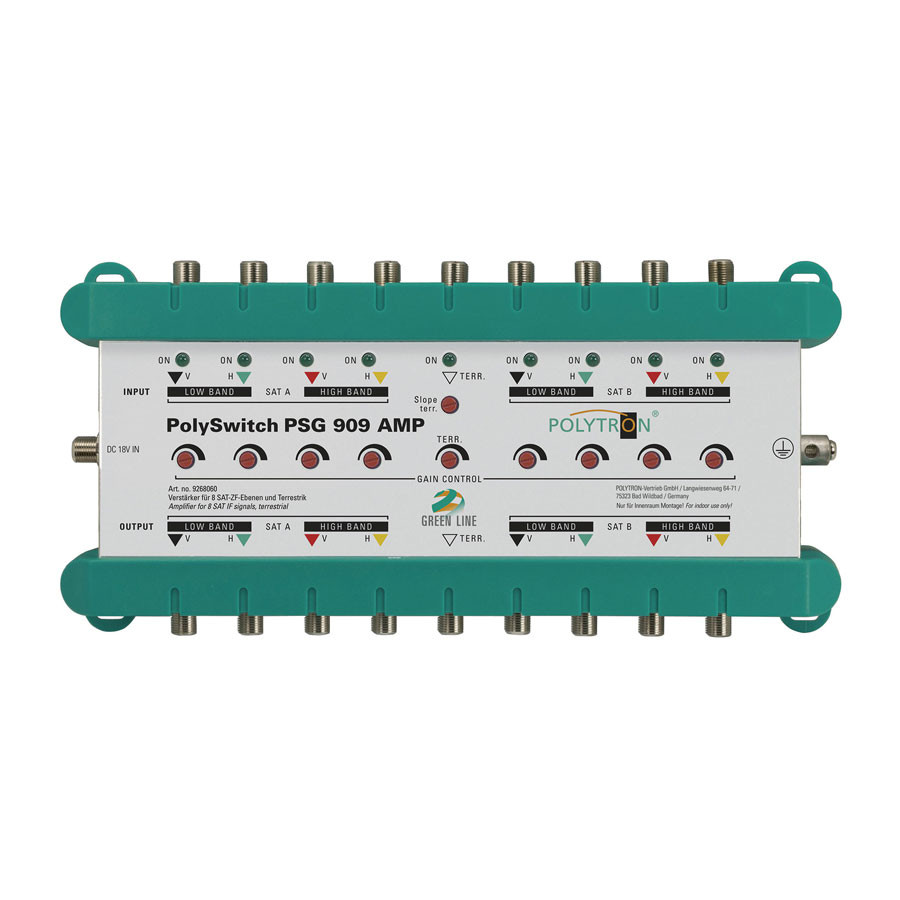

Polytron PSG 909 AMP 9 in 9 out, multiswitch line amplifier,

Polytron PSG 909 AMP 9 in 9 out, multiswitch line amplifier,

€199.00
VAT included
Quantity

Polytron
POL.9268060
  Beveiligingsbeleid

(bewerken met de module Klantenverzekering)

  Leveringsbeleid

(bewerken met de module Klantenverzekering)

  Retourbeleid

(bewerken met de module Klantenverzekering)

9 Inputs Line amplifier

Polytron PSG 909 AMP is a line amplifier with 9 inputs (8 x SAT, 1 X TER). Every input satellite has a 15-24 dB level control and for terrestrial 17 dB.

The PSQ 909 AMP gets its power supply via an optional external power supply or switchable remote power supply. The LNB power supply is also switchable.

Technical data Polytron PSG 909 AMP

  • Inputs: 8 x SAT, 1 x ter)
  • Outputs: 8 x SAT, 1 x ter (1 x Through Output)
  • Input frequency
    • SAT: 950-2200 MHz
    • TER: 18-862 MHz
  • Return loss (inputs and outputs)
    • SAT: GEM. 10 dB
    • TER: GEM. 10 dB
  • Gain
    • SAT (950-2150 MHz): 15 ~ 24 dB
    • Ter (18-862 MHz): 17 dB
  • GAIN CONTROL: 20 DB
  • Slope Control
    • SAT: 10 DB (FIX)
    • Ter: 0-15 dB
  • Max. output
    • SAT (IMA3 35 dB): 110 dbμV
    • TER (IMA3 60 dB): 105 dBμV
  • DC power consumption: 380 mA
  • Work voltage: 18 VDC
  • LNB feed current: 1500 mA Optional (with PMP-NG 15/3300)
  • Dimensions (B x H x D): 254 x 128 x 49 mm
Polytron
POL.9268060
1 Item

Specific References

MPN
9268060
