• New

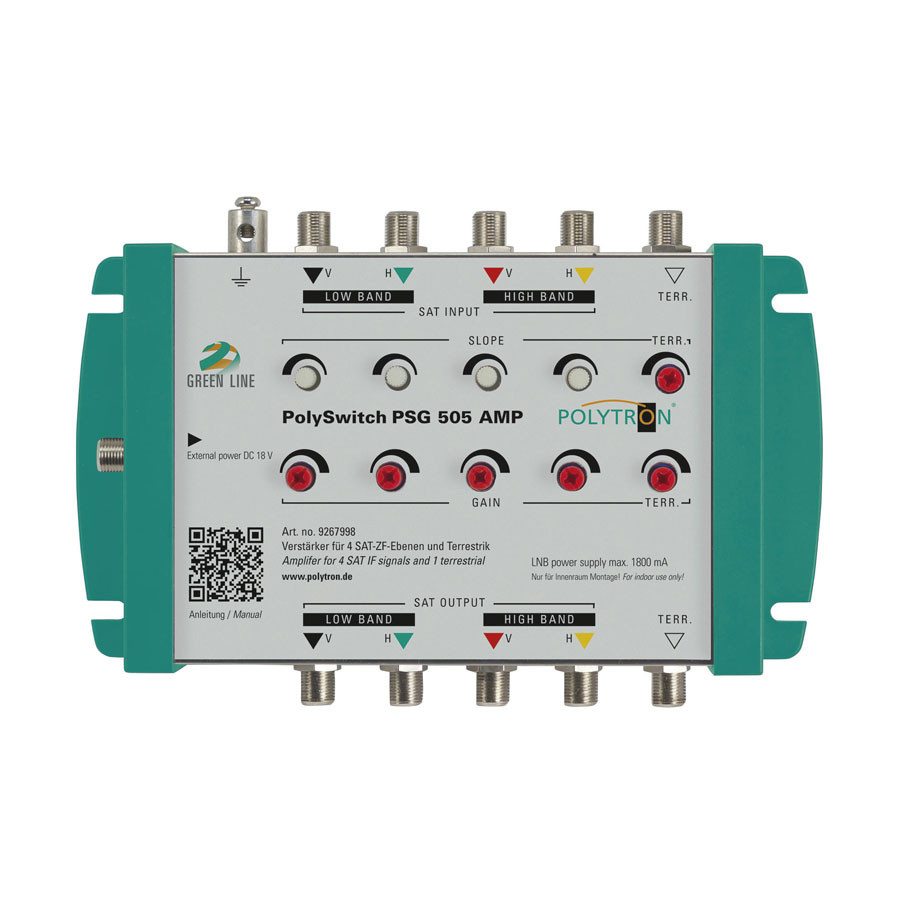

Polytron PSG 505 AMP 5 in 5 from Multiswitch line amplifier

Polytron PSG 505 AMP 5 in 5 from Multiswitch line amplifier

€149.00
VAT included
Quantity

Polytron
POL.9267998
  Beveiligingsbeleid

(bewerken met de module Klantenverzekering)

  Leveringsbeleid

(bewerken met de module Klantenverzekering)

  Retourbeleid

(bewerken met de module Klantenverzekering)

5 Inputs Line amplifier

Polytron PSG 505 AMP is a line amplifier with 5 inputs (4 x SAT, 1 x ter). Every input satellite has a 15-24 dB level control and for terrestrial 17 dB.

The PSQ 505 AMP receives its power supply via an external supplied power supply or switchable remote power supply. The LNB power supply is also switchable.

Technical data Polytron PSG 505 AMP

  • Inputs: 5 x SAT, 1 x ter)
  • Outputs: 5 x SAT, 1 x ter (1 x Through Output)
  • Input frequency
    • SAT: 950-2150 MHz
    • TER: 47-862 MHz
  • Return loss (inputs and outputs)
    • SAT: GEM. 10 dB
    • TER: GEM. 10 dB
  • Gain
    • SAT (950-2150 MHz): 21 dB
    • Ter (18-862 MHz): 15 dB
  • GAIN CONTROL: 0-18 dB
  • Slope Control
    • SAT: 0-9 dB
    • Ter: 0-15 dB
  • Max. output
    • SAT (IMA3 35 dB): 114 dbμV
    • Ter (IMA3 60 dB): 108 dBμV
  • DC power consumption: 250 mA
  • Work voltage: 18 VDC
  • LNB feed current: 2000 mA
  • Dimensions (B x H x D): 193 x 120 x 53 mm
Polytron
POL.9267998
1 Item

Specific References

MPN
9267998
