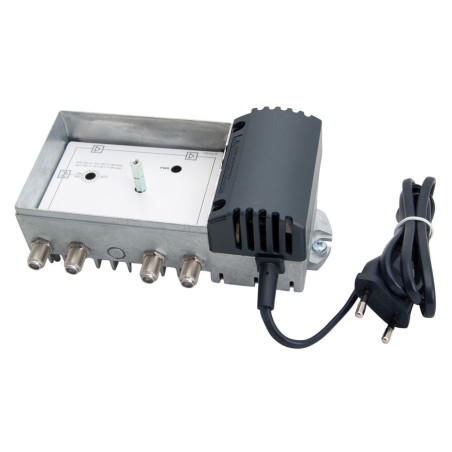

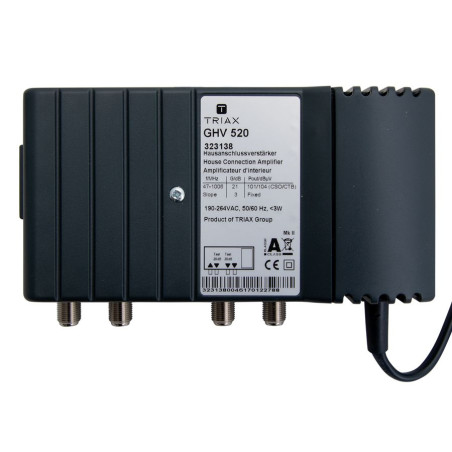

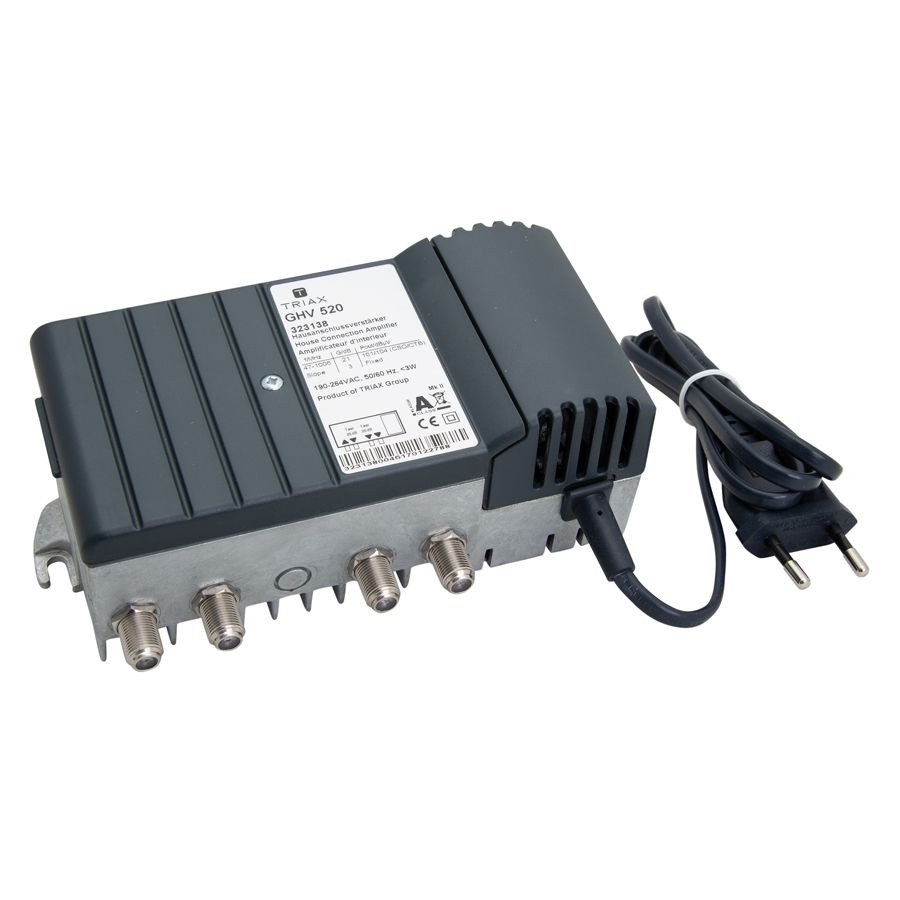

Triax GHV520 Amplifier 20db without return path

Triax GHV520 Amplifier 20db without return path

€87.95
VAT included
Triax GHV 520 coax enhancer (20 dB)
Quantity

Triax
TRX.323138
  Beveiligingsbeleid

(bewerken met de module Klantenverzekering)

  Leveringsbeleid

(bewerken met de module Klantenverzekering)

  Retourbeleid

(bewerken met de module Klantenverzekering)

20 DB Signal amplifier without return path

The Triax GHV 520 is a 20 dB signal amplifier for compact CATV distribution networks in apartment complexes or houses.

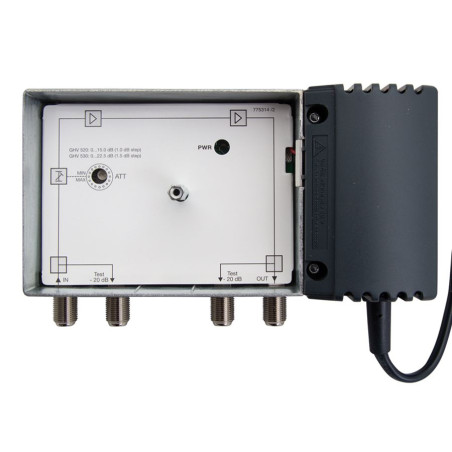

The amplifier has 1 input, 1 output and is equipped with test points for RF-IN and RF-OFF (both -20 dB). The test points are only suitable for testing.

Technical data Triax GHV 520 amplifier (20 dB)

  • Output level CTB @ 60 dB IMD: 104 dBμV
  • Output level CSO @ 60 dB IMD (42 CH) Flat: 101 dBμV
  • Frequency range: 47-1006 MHz
  • Noise number - Forward (VHF I "on"): 5.5 dB
  • Reinforcement: 21 dB (@ 1006 MHz)
  • Strengthening forward - Interstage: 0 / -3 dB
  • Noise number: 5.5 dB
  • Attenuation: 0-20 dB
  • Attenuation - Interstage: 3 dB
  • Return loss - Input (@ 40 MHz):> 18
  • Linearity: ± 1.0 dB
  • Impedance: 75 Ω
  • AC power supply: 190-264 VAC
  • Gem. Energy consumption: <3 W
  • Operating temperature range: -25 to +55 ° C
  • IP Protection class Housing: IP 20
  • Reference standards: EN 50083-3 - Class 2 / EN 50083-1; EN 60065 / EN 50083 / 2ROHS 2002/95 / EC Compliant
  • Insulation class: II
  • RF testing point input (bi-directional): -20 db
  • RF testing point output (bi-directional): -20 db
  • Connector: F connector (female)
  • Dimensions (L x W x D): 170 x 100 x 65 mm
  • Weight: 710 grams
Triax
TRX.323138
5 Items

Specific References

MPN
323138
