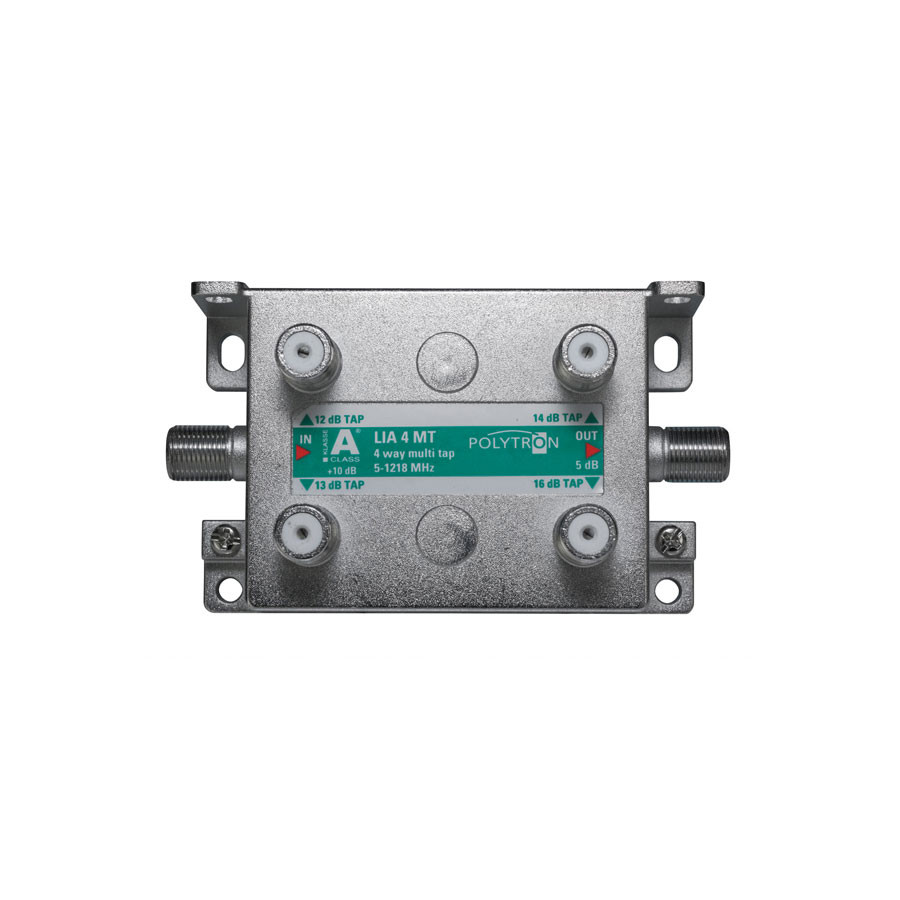

Polytron Lia 4mt F-Multitap 4-fold 5-1218 MHz Docsis 3.1

Polytron Lia 4mt F-Multitap 4-fold 5-1218 MHz Docsis 3.1

€16.95
VAT included
Quantity

Polytron
POL.3262619
  Beveiligingsbeleid

(bewerken met de module Klantenverzekering)

  Leveringsbeleid

(bewerken met de module Klantenverzekering)

  Retourbeleid

(bewerken met de module Klantenverzekering)

4-fold Docsis 3.1 Multitap in U Shape

The Polytron Lia 4mt is a 4-way splitter in a cast steel housing. The frequency range is from 5-1218 MHz and this is also suitable for Docsis 3.1. The damping at the outputs is 12-16dB and the damping on the doorlus is 5 dB.

Connections

This splitter is equipped with 1 input, 1 door loop and 4 outputs that are all equipped with a F connector and are attached to the front of the housing.

Confirmation

In addition, they have slot holes on both sides with which the splitter can be attached directly to the wall.

Important characteristics

  • Excellent amplitude frequency response
  • High degree of shield thanks to the fully soldered housing
  • Shielding class A (+ 10DB) according to EN50083-2: 2012
  • Docsis 3.1-compatibel
  • Low intermodulation
  • Slotbevestiging
  • Suitable for return channels
  • Earth clip 8 mm²
Polytron
POL.3262619
5 Items

Specific References

MPN
3262619
